ATLAS 4

ATLAS 4 - Muti-sensor Payload Capability Quadcopter Drone System

TECH SPECS

Dimensions (length – width – height): – folded	64.5×64.5×48 [cm]
Dimensions (length – width – height): – developed	130x130x48 [cm]
Maximum take-off weight (MTOW):	13 [kg]
Maximum Payload Capacity:	5 [kg]
Endurance:	65 [mins] (depending on configuration)
Telemetry & Video Range:	15 [km] RLOS (extendable)
Degree of Protection:	IP45
Maximum flight altitude:	9000 [ft]
Positioning system:	GNSS [GPS & GLONASS]
Frequency of communications:	2.4 [GHz]
Temperature operating range:	-20 [°C] to +60 [°C]
Automatic Take-off & Landing:	Yes
Number of personnel required:	One [1]
Propulsion system:	Four (4) electric motors

Description

presense

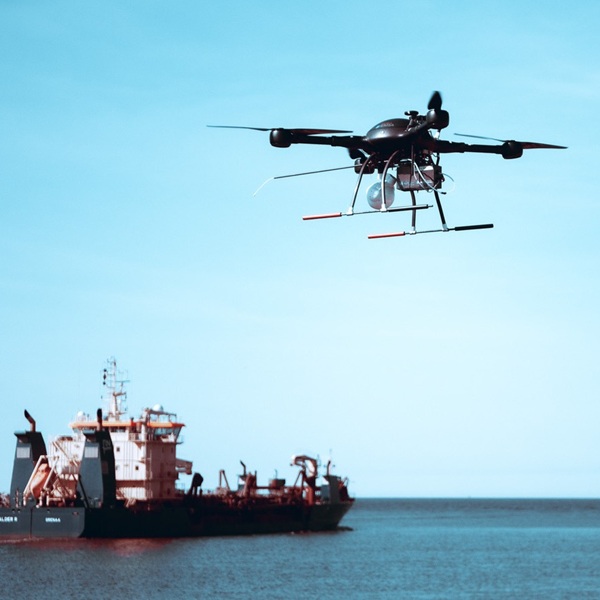

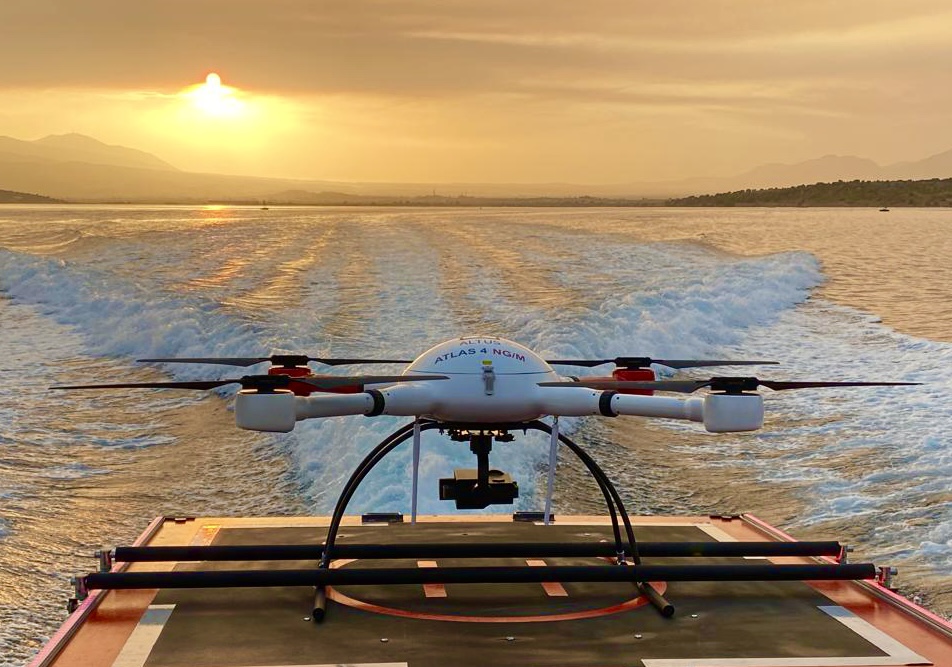

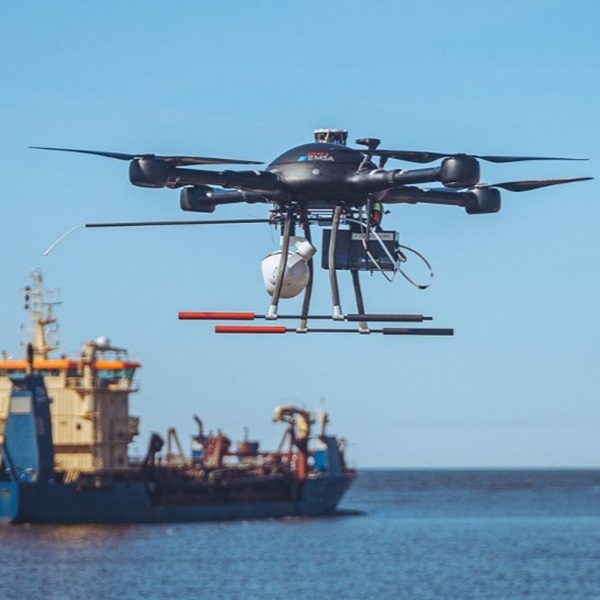

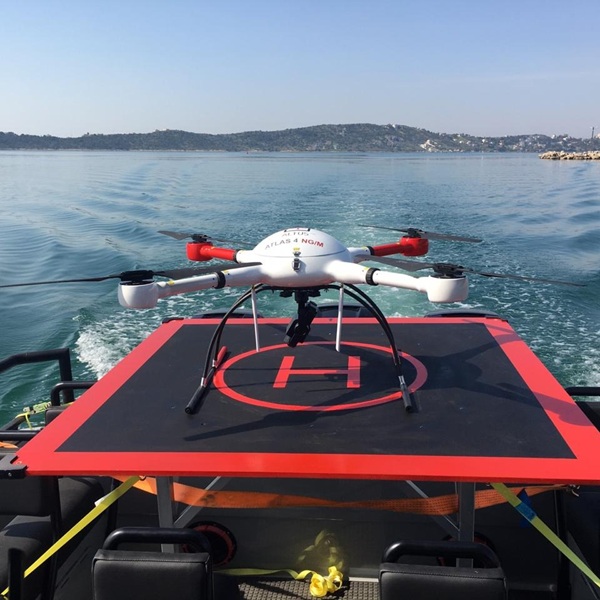

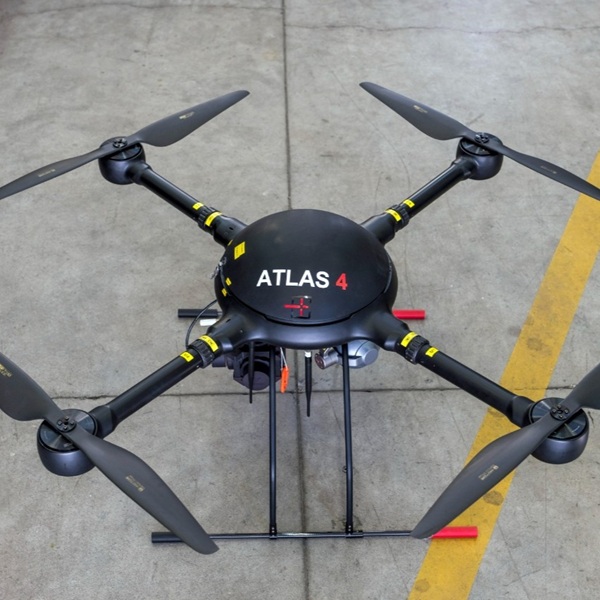

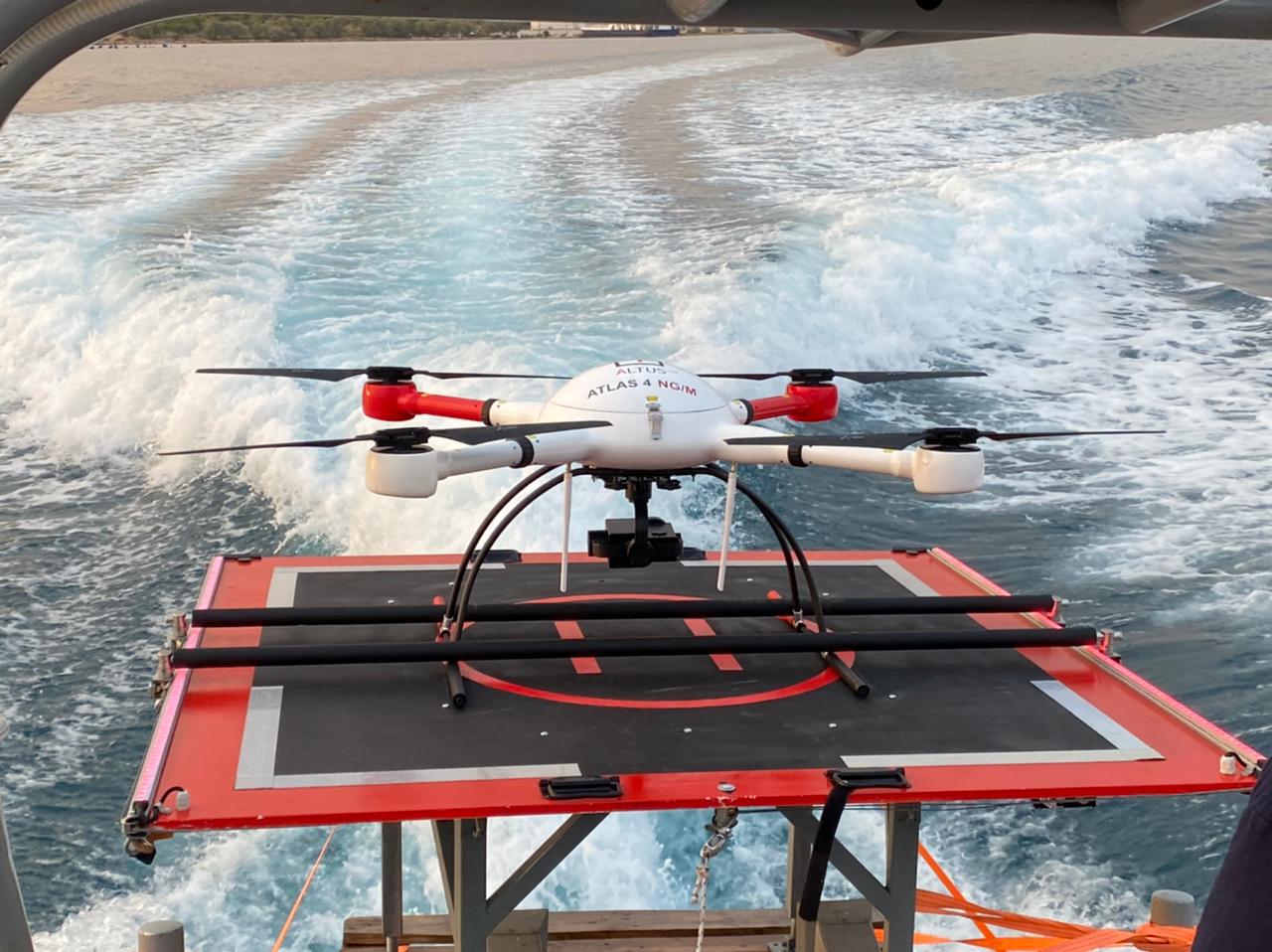

ATLAS 4 unmanned aerial system is a versatile VTOL multirotor RPAS, with several years of operational experience, both on land and on maritime operations. The system’s small size, weight and operational footprint, make it ideal for operations in areas where other larger scale UAVs cannot operate – since it only requires a 3x3m take-off/landing area. The ATLAS system is designed to the highest industrial standards, with state-of-the-art mission command systems, encrypted RF links, redundant safety systems and reconfigurable payload hub.
