EDOMON - Long Range Tactical ISR VTOL UAS

TECH SPECS

Dimensions (length – width – height) – developed:

1842×2717 [mm]

Maximum take-off weight (MTOW):

23 [kg]

Max Weight  | Payload Capacity

5 [kg]

Endurance (at max payload):

7-10 hours (depending on configuration)

Telemetry and video range:

100 [km] LOS (extendable)

Degree of protection – tightness:

IP55

Maximum flight altitude:

14,000 [ft]

Positioning system:

GNSS (GPS & GLONASS)

Frequency of communications:

2.4 [GHz] (AES 128 & 256 Encryption

Temperature operating range:

-10 to +55 [°C]

Possibility of automatic take-off/landing:

Yes

Number of people required:

ONE (1)

Power:

4 Electric Motors + IC Engine

Maximum Wind Speed conditions during take-off and land:

50 km/h – 13 m/s (6 bft)

Maximum Wind Speed conditions during cruise flight:

61 km/h – 16 m/s (7 bft)



Description

presense

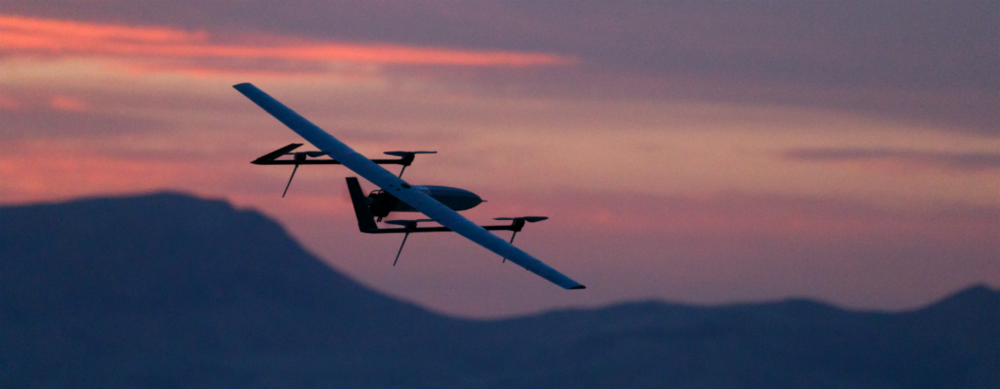

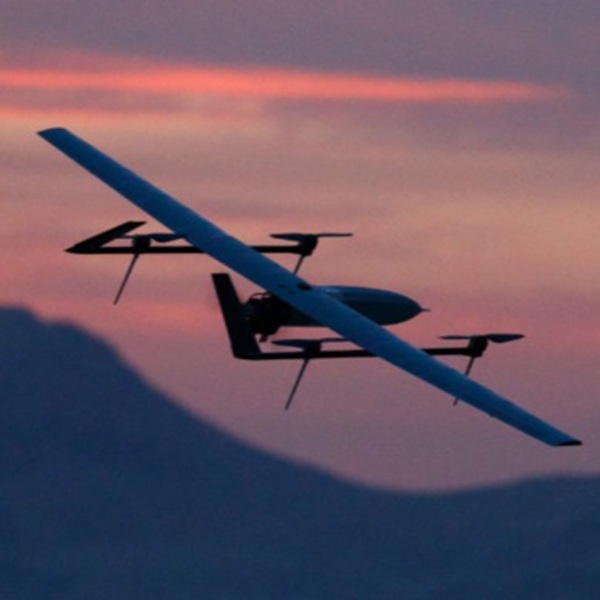

EDOMON is a Hybrid Fixed Wing VTOL UAV, designed to deliver reliable and efficient ISR Operations for the Law enforcement, Civil Protection, and Defence Market. The EDOMON system is designed to operate with minimum manpower and operational footprint and is able to operate under harsh environmental & electromagnetic conditions. The System is able to deliver enhanced ISR capabilities with the use of EO/IR, AIS & IMSI Catcher Payloads for an extended period of time (7-10 hours) and to an extended area (up to 100 Km, extendable)
