ATLAS 8

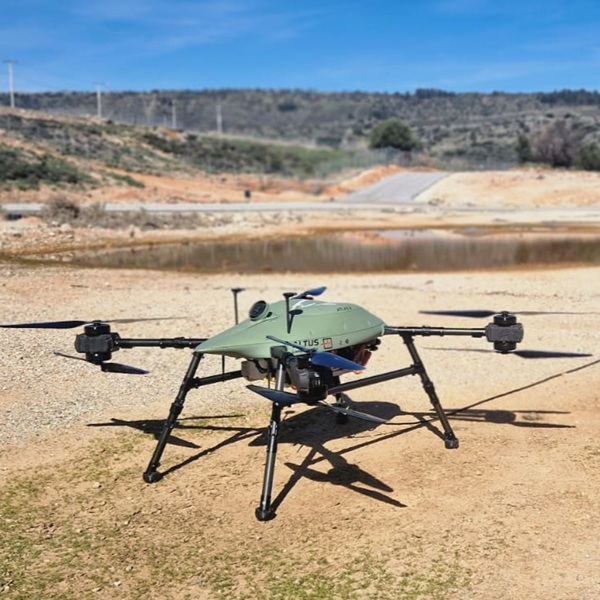

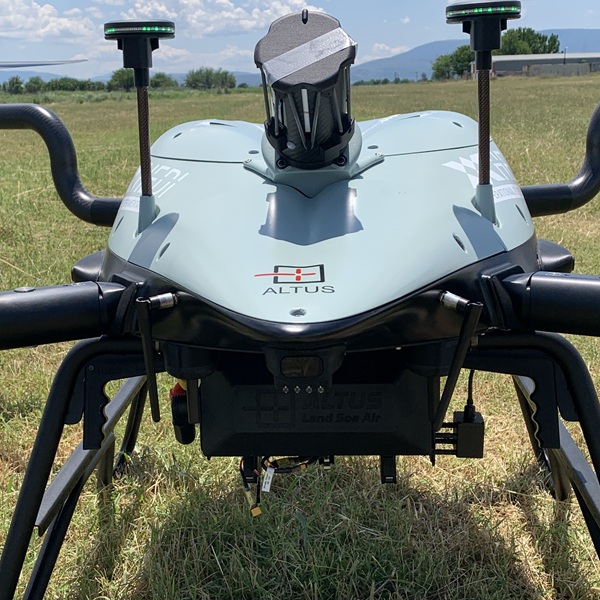

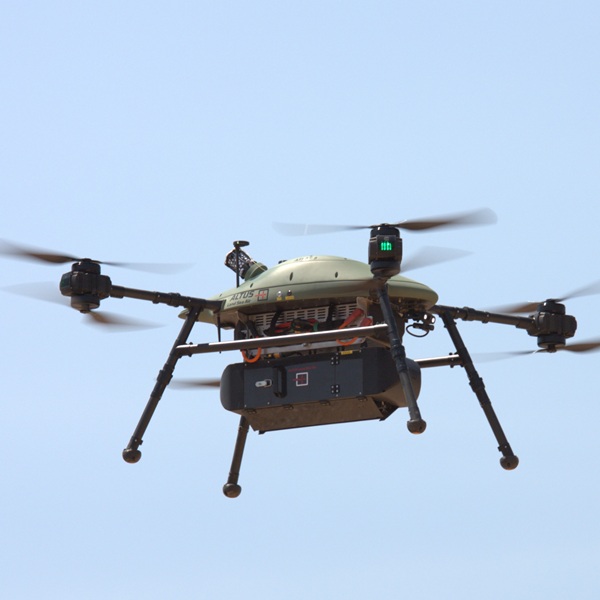

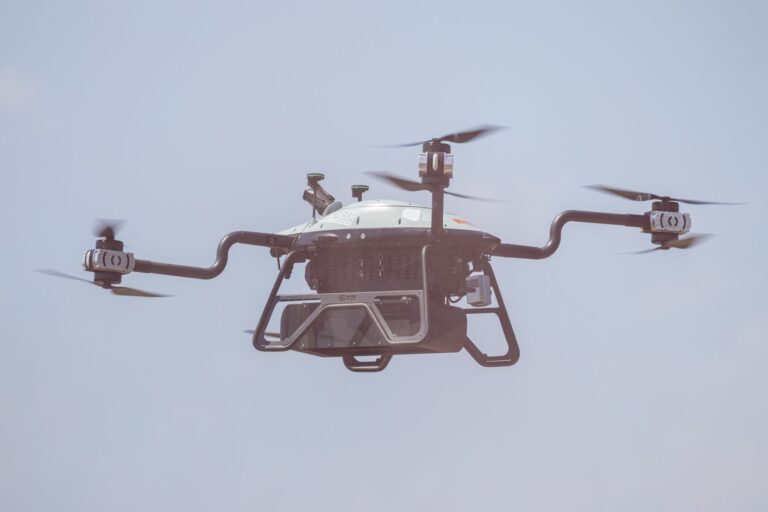

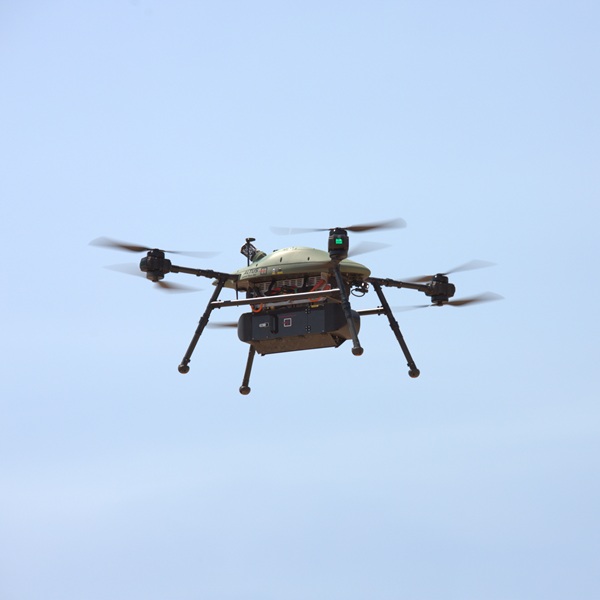

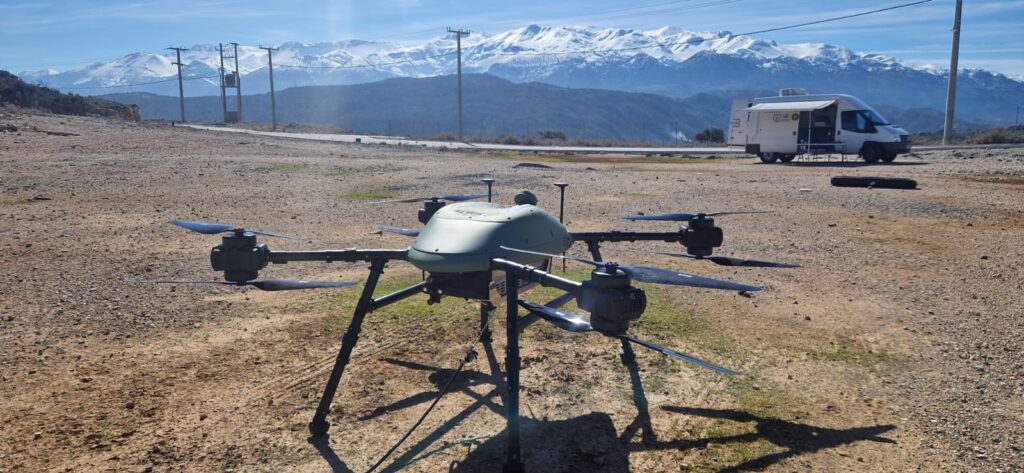

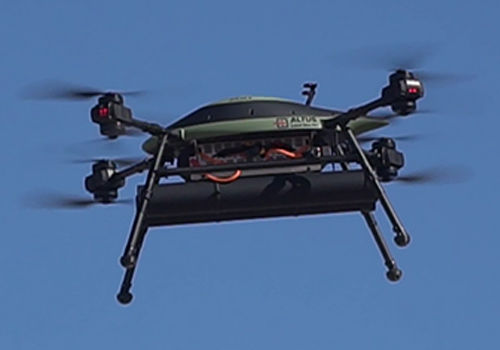

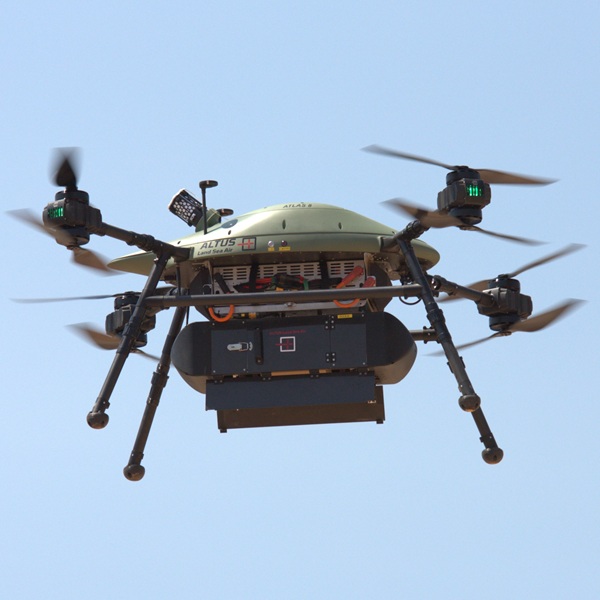

ATLAS 8E - Electric Heavy Lifter Octacopter

TECH SPECS

Dimensions (length – width – height (with gps)) – folded:	1050 x 676 x 573 [mm]
Dimensions (length (with propellers) – width (with propellers) – height (with gps)) – developed:	2640 x 2962 x 860 [mm]
Maximum take-off weight (MTOW):	172 [kg] (depending on configuration)
Max Weight \| Payload Capacity	60 [kg]
Telemetry and video range:	30 [km] LOS (extendable)
Degree of protection – tightness:	IP44 (upgradable to IP55)
Maximum flight altitude:	16,400 [ft]
Maximum flight speed:	79 [km/h] (49.1 [mph])
Positioning system:	GNSS (GPS & GLONASS)
Frequency of communications:	2.4 [GHz] (AES 128 & 256 Encryption
Temperature operating range:	-20 to +60 [°C]
Possibility of automatic take-off/landing:	Yes
Number of people required:	TWO (2)
Battery features:	2 x 12S1P 105,000 [mAh]
Electric Power	8 Electric Motors
Navigation lights:	Yes (Green, Red and white)

Description

presense

The ATLAS 8 family is a heavy lifter multi-copter addressing the emerging requirements of the small cargo and last mile (commercial products) transport market. ATLAS 8 employs design features and operational experience from the smaller members of the ATLAS family of UAVs and provides the end user with the best weight to mile to cost ratio.

The System redundancy and reliability offered by its 8 extremely powerful motors along with its robust design and sophisticated modular payload bay make ATLAS 8 a platform with unlimited potential. Beyond heavy freight transport, the on-board industry-leading advanced control systems will allow precise mid-air deployment of passive or active cargo making it a perfect candidate for a wide range of weapon systems and resupply operations.
